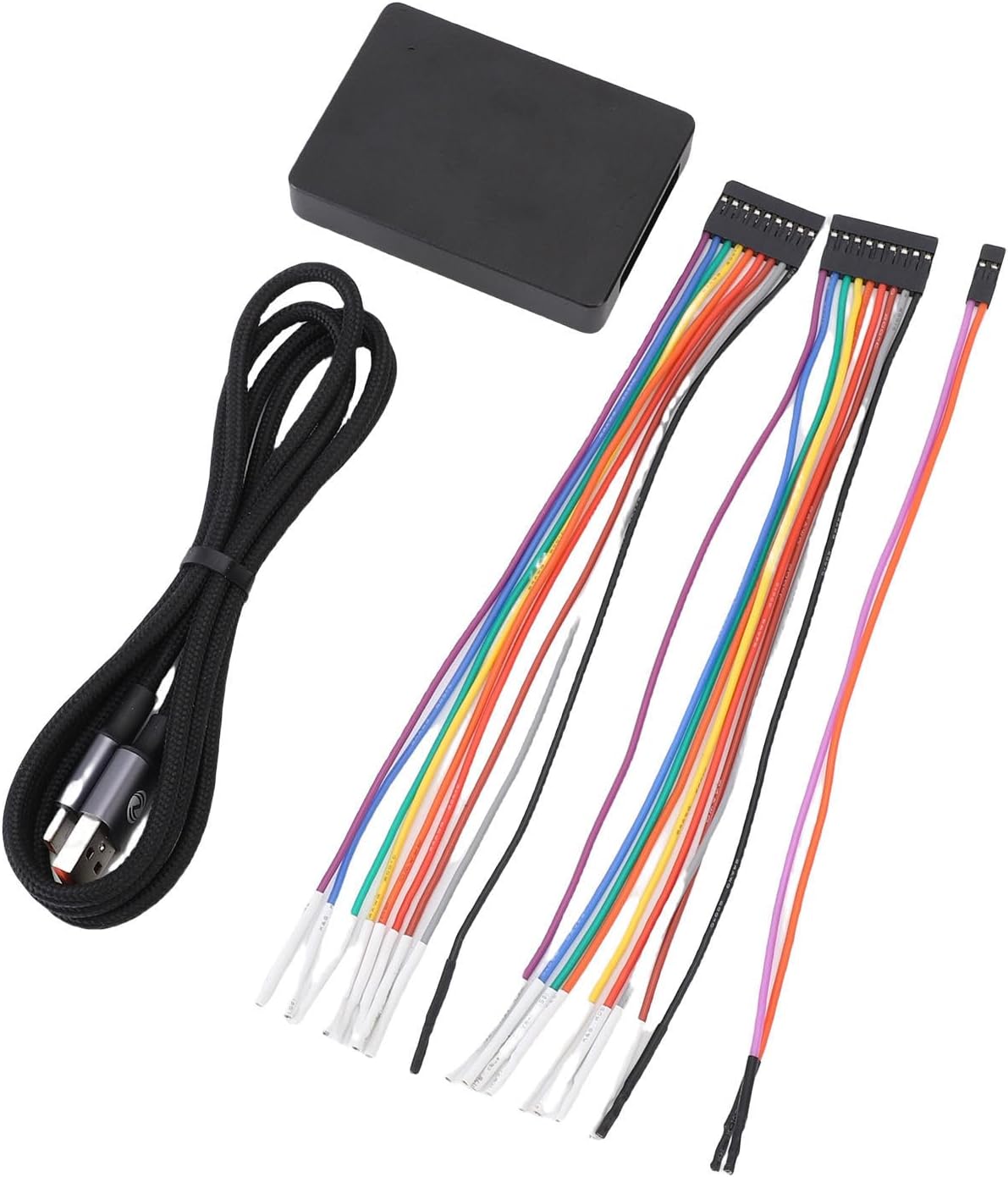

Generic 16 Channel USB Logic Analyzer for Telecommunication, with 16G Sampling Depth for Accurate Signal Analysis

1. [MASSIVE STORAGE CAPACITY] Store up to 16G of data in streaming mode for detailed signal analysis. 2. [ADVANCED SAMPLING RATES] Enjoy 1 GHz for 8 channel configurations and 500 MHz for 16 channels. 3. [ROBUST MEMORY OPTIONS] from 256Mbits of SDRAM for efficient data catch and processing. 4. [UNIVERSAL COMPATIBILITY] Seamlessly integrate with to 10, OS X, and systems. 5. [ENHANCED WAVEFORM CLARITY] Achieve cleaner waveforms with adjustable thresholds and masking lines. Specification: Item Type: Logic Analyzer Material: ABS Channels: USB Interface: USB2.0 (Type C, support reversible plug) Maximum Sampling Rate: Buffer: 1GHz 500MHz () Stream: 100MHz 50MHz 20MHz () Minimum Detectable Pulse Width: Maximum Detectable Frequency: 200MHz Maximum Hardware Storage Depth: 3.5G(bit) Maximum Sampling Depth: Buffer: 3.5G(bit) ( hardware compression can effectively increase sampling depth) Stream: Depending on the computer's memory size with low sampling rate Data Catch Mode: Buffer (higher sampling rate), Stream (longer sampling time) Catch Accuracy: ± one sampling period Actuator Types: Rising Edging, High Level, Falling Edging, Low Level, Any Edging Protocol Support: for 170+ (open protocol decoding library, can customize any protocol) Input Voltage Tolerance: -40V to +40V Input Impedance: 250K/15pF Threshold Range: -5V to +5V (0.1V steps) Waveform Output: 1Hz to 20MHz (3.3V, non adjustable), supports 2 PWM channels Channel Interface: 2.54mm interface (standard 20 pin horn socket) How to Use: Remove the product for direct use. Package List: 1 x Logic Analyzer 1 x USB Cable Type C 2 x 9 Pin Single Headed to Rainbow Cable 1 x 2 Pin Single Headed to Rainbow Cable 1 x User Manual 1 x Storage Bag

• [MASSIVE STORAGE CAPACITY] Store up to 16G of data in streaming mode for detailed signal analysis.
• [ADVANCED SAMPLING RATES] Enjoy 1 GHz for 8 channel configurations and 500 MHz for 16 channels.
• [ROBUST MEMORY OPTIONS] from 256Mbits of SDRAM for efficient data catch and processing.
• [UNIVERSAL COMPATIBILITY] Seamlessly integrate with to 10, OS X, and systems.
• [ENHANCED WAVEFORM CLARITY] Achieve cleaner waveforms with adjustable thresholds and masking lines.
